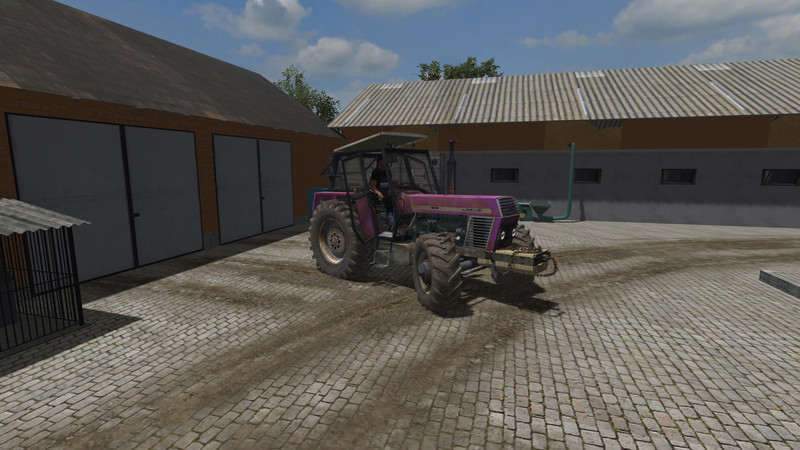

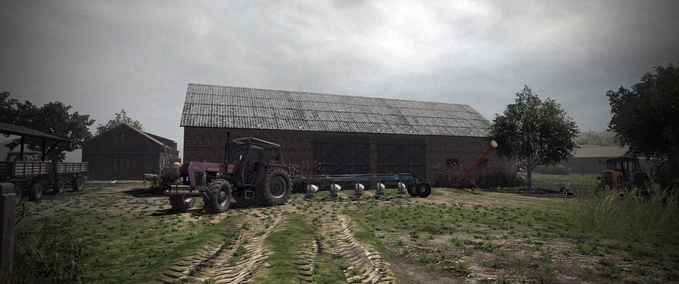

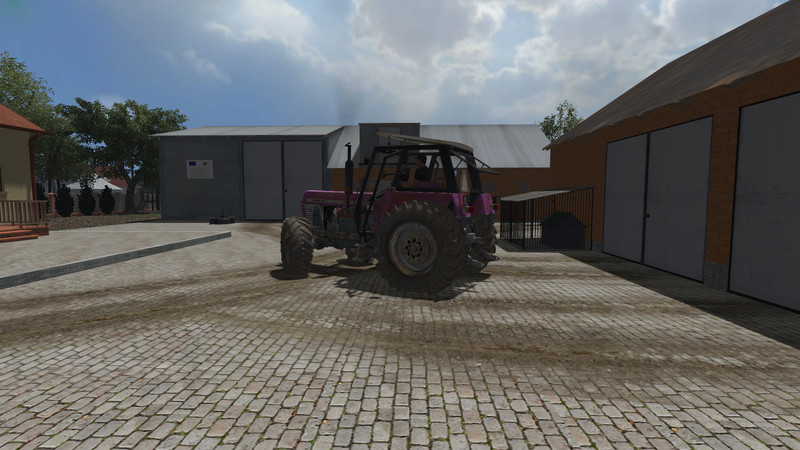

Hi All, I would like to present my first project Ursus 1604.
Assumptions:
I'm working on the most realistic representation of the model and the physics of driving, work, engine, gearbox.
Mod will be based on a More Realistic Mod and realManualTransmission.
Status of works estimate at 70/75%, tested model is version Beta V0.16a

Description:
-opening door
-opening sunroof
-opening rear window

-on the button: removable mask
-on the button: removable fenders
-on the button: removable weights on the wheel
-on the button: removable front ballast
-on the button: the assumed front linkage

-animated pedals: accelerator, brake and clutch (full cooperation with realManualTransmission)
-animated wajchy: gearbox (complete cooperation with realManualTransmission), hand throttle, switch tortoise / hare, relay transmission, lift the rear
-animation tachometer, fuel level gauge, air pressure, battery charging
-animation rear lift and steering
-animation cardan shaft (rotates in the direction of travel and speed of the tractor)
farmer hand-animation
-animation front axle
-animation engine components
-animation catcher sparks
-animation vibration chimney and the tractor after firing (the oscillation frequency increases with rotation)

-full lighting
-dust from the wheels on the
-realistic driving physics
-view mirrors
-realistic Copyright sounds
-manual firing, does not go out after leaving
-mod plowing
-Dynamic exhaust
-turns and smoke rise at all field work
-1:1-scale
-turns and smoke rise at all field work

-More Realistic Mod
-realManualTransmission

------------------------------------------------------------------------------------------------------------------

Heavy tractor Polish production URSUS 1604 produced in the years 1978 to 1984

description:

ENGINE
TYPE: TURBO 8602.12
Number of cylinders: 6
Type of injection: direct
Diameter cyl. / Stroke: 110/120 mm
Displacement: 6842 cm3
Compression ratio: 17
Rated power to DIN 70020 at 2200 r / min: 114 kW (155 hp)
Maximum torque at 1650 rev / min: 566.6 Nm
Specific fuel consumption (optimal): 210 g / kWh
Cooling system: liquid
Air filter: Dry Eurupiclon with prefilter
ELECTRICAL
Battery: 2 x (12 V - 140 Ah)
Alternator: 14 V - 53 A
Starter: 24 V - 6.6 kW (9 hp)
MAIN CLUTCH
Type: Friction single with automatic clearance adjustment, mechanically operated
TRANSMISSION
Gearbox: synchronized, mech. reducer and switchable hydraulic torque amplifier with a gear ratio of 1.34

Number of gears front / rear: 16/8
Rear axle: main gearbox with planetary
Differential lock: mechanical
SPEEDS
At rated engine speed of 18.4 R38 tires with / without wzmacn. moment
- Front
1 and 2.84 / 2.12 km / h
I 2 4.47 / 3.34 km / h
3 and 8.16 / 6.10 km / h
4 and 9.40 / 7.03 km / h
1 II 9.46 / 7.07 km / h
2 II 14.90 / 11.14 km / h
3 II 27.17 / 20.30 km / h
4 II 31,32 / 23.41 km / h
- Rear
1 R 4.43 / 3.31 km / h
R 2 6.99 / 5.22 km / h
3 R 12.74 / 9.52 km / h
4 R 14.68 / 10.97 km / h
POWER TAKE
Type: independent, controlled hydraulically activated clutch
PTO speed / motor: 540/1890 rev / min 1000/1920 rev / min
PTO shaft diameter 35 and 45 mm
Number of inlets:
- Ending 35 mm: 6 (540) and 21 (1000)
- Ending 45 mm: 20 (1000)
Minimum power of the PTO at rated engine speed: 103 kW (140 hp)
HYDRAULIC SYSTEM
The lift: depth control, positional, mixed, pressure
Pump Flow: 55 dm3/min
Nominal pressure on the quick: 16 MP
Three Point Hitch tools: 3 (2) category according to ISO
Maximum load capacity lift: 5500 kg
External hydraulics 5 couplings
Additional full-flow hydraulic oil filter
STEERING
Type: Hydrostatic
FRONT AXLE DRIVE
Type: Main gear bevel and planetary final drives
Differential lock: electro-hydraulic
BRAKES
Brake: Disc, dry, independent on both wheels, rudder. hydraulic
Parking brake: mechanical
TYRES
Front: 14.9 R24
Rear: 18.4 R38
WHEEL BASE
Front: 1690-1890 mm
Back: 1500-1875 mm
DIMENSIONS
Length with / without front weights: 4590/4950 mm
Height of cab / muffler: 2750/2640 mm
Width (1800 mm wheelbase rear): 2270 mm
Wheelbase: 2,695 mm
Ground clearance: 475 mm
WEIGHT
Tractor ready to work without any additional masses aggravating: 5028 kg
Tractor ready to work with weights front and rear: 6292 kg
The water in the tires of the rear wheels: 2 x 394 kg
VOLUME
Fuel tank capacity: 170 dm3
Engine oil sump 24 dm3
Engine cooling system with / without heating the cabin: 27.0 / 29.0 dm3
Driveline and Hydraulics: 46.0 dm3
Final Front: 2 x 1.25 dm3
Final Rear: 2 x 4.5 dm3
Front axle: 3.5 dm3
Steering: 7.0 dm3
Brakes: 0.5 dm3
CAB
two doors, removable roof cover, hinged rear window and side windows,
ventilation and heating, air filter in the roof, side mirrors,
front and rear wiper and windscreen washer, the seat of
hydraulic damping Grammer
TEAMS Connection and - EYES
Half bracket tool with front hitch
Clevis
Lower hitch universal (automatic)
drawbeam
Linkage with hooked ends Walterscheid'a
BASIC UNITS EQUIPPED
Front weights I - 1 x 30kg, 6 x 26 kg
Front weights II - 2 x 80 kg, 10 x 45kg
Rear wheel weights - 2 x 26 kg, 16 x 33kg
Air compressor installation control air brakes trailers
front Fenders
tool Kit
triangle distinctive
Working lights on the cab 2 front and 2 rear
TEAMS SPECIAL REQUESTS
Gear reducer Creeper instead of the amplifier until
PTO dependent
2 additional external hydraulic couplings
Couplings type AGRIC
Instead of pivoting hitch universal
The front PTO (1000 rpm, the power of WOM - 40 kW)
Front linkage lifting capacity 2000 kg
The weight to the front linkage - 780kg
